The Ultimate SMT Splicing Guide 2026: Tools, Tapes, and Best Practices

In the high-speed ecosystem of Surface Mount Technology (SMT), the difference between a profitable shift and a logistical nightmare often comes down to a few millimeters of adhesive. As we move through 2026, the demand for zero-downtime manufacturing has transformed SMT splicing from a “convenience” into a strict operational requirement.

If your production line still stops for every reel change, you are essentially driving a Ferrari and stopping at every green light. This guide serves as the definitive resource for modern SMT technicians and production managers looking to master the art and science of splicing.

1. Why Splicing is Non-Negotiable in 2026

The primary metric for any SMT line is OEE (Overall Equipment Effectiveness). Every time a pick-and-place machine stops because of an empty reel, you lose more than just time; you lose thermal consistency in your reflow oven and synchronization in your logistics chain.

The Splicing Advantage:

• Continuous Feed: Machines run 24/7 without re-threading.

• Reduced Component Scrap: Eliminates the “leader” waste (usually 10-20 components per reel).

• Feeder Protection: Reduces the mechanical wear caused by constant loading and unloading.

2. The Anatomy of a Perfect Splice: The Essential Tools

You cannot achieve a high-reliability splice with office supplies. Professional SMT splicing requires a specific “kit” designed for precision and mechanical strength.

A. SMT Splicing Scissors (The Alignment Tool)

Standard scissors create jagged edges. Professional SMT cutters feature integral alignment pins that fit into the sprocket holes of the carrier tape. This ensures a perfect 90-degree cut exactly between two component pockets.

B. SMT Splicing Pliers & Brass Shims

For high-speed feeders (especially those handling 8mm or 12mm tapes), adhesive alone is often insufficient. Brass Shims are small metal clips with micro-teeth. When crimped with a splicing plier, they physically bridge the two tapes, providing the mechanical “backbone” needed to survive the high-tension jerks of an electric feeder.

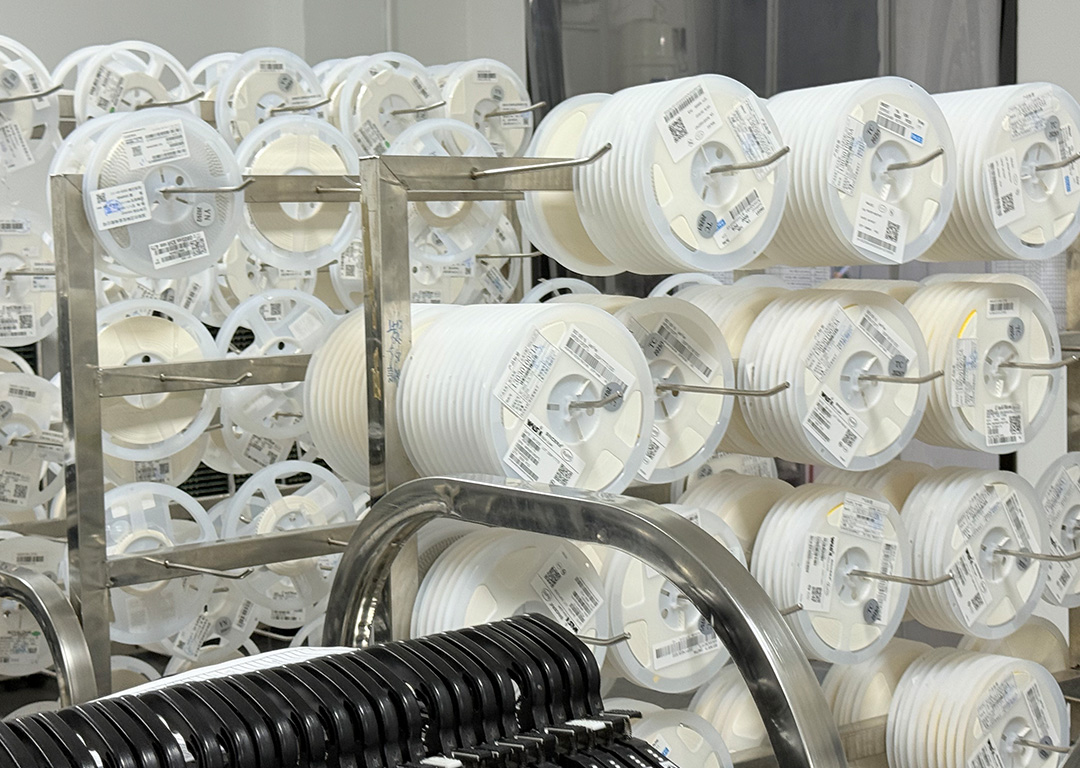

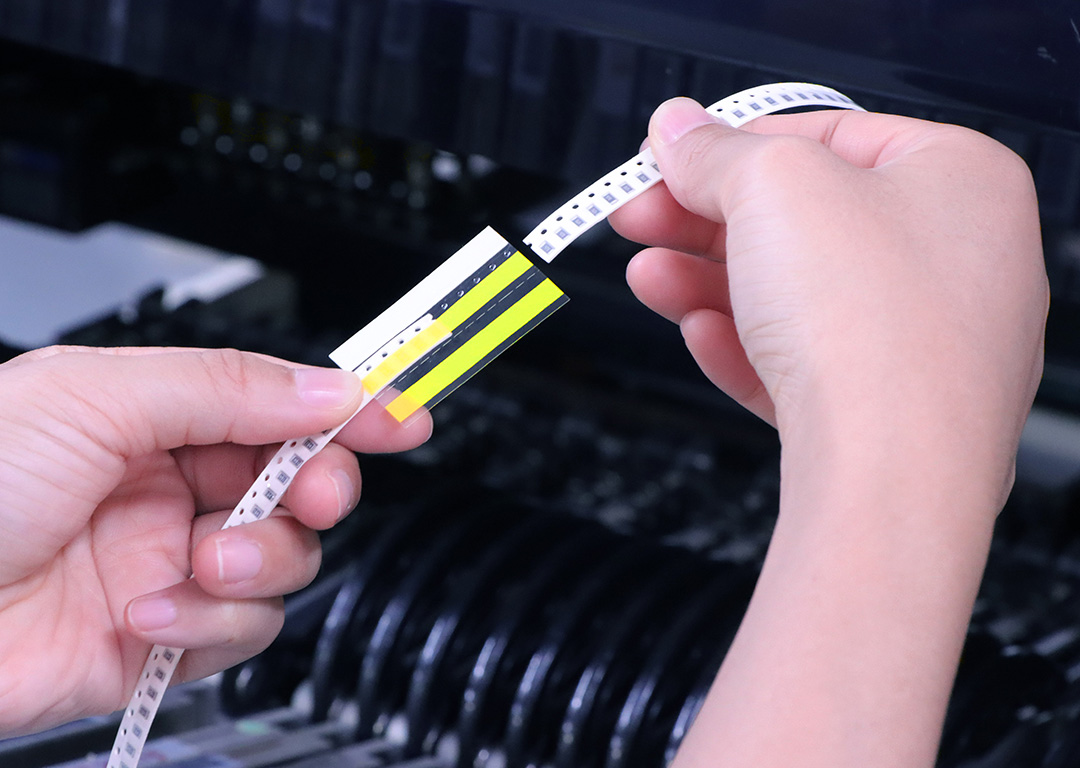

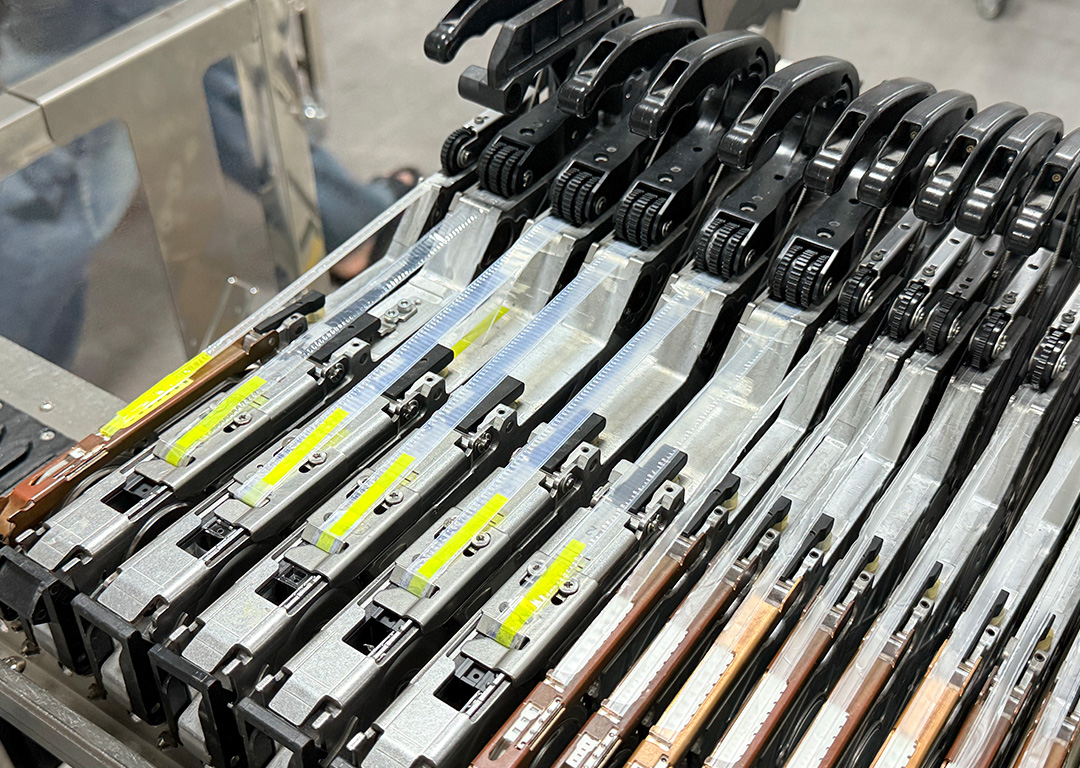

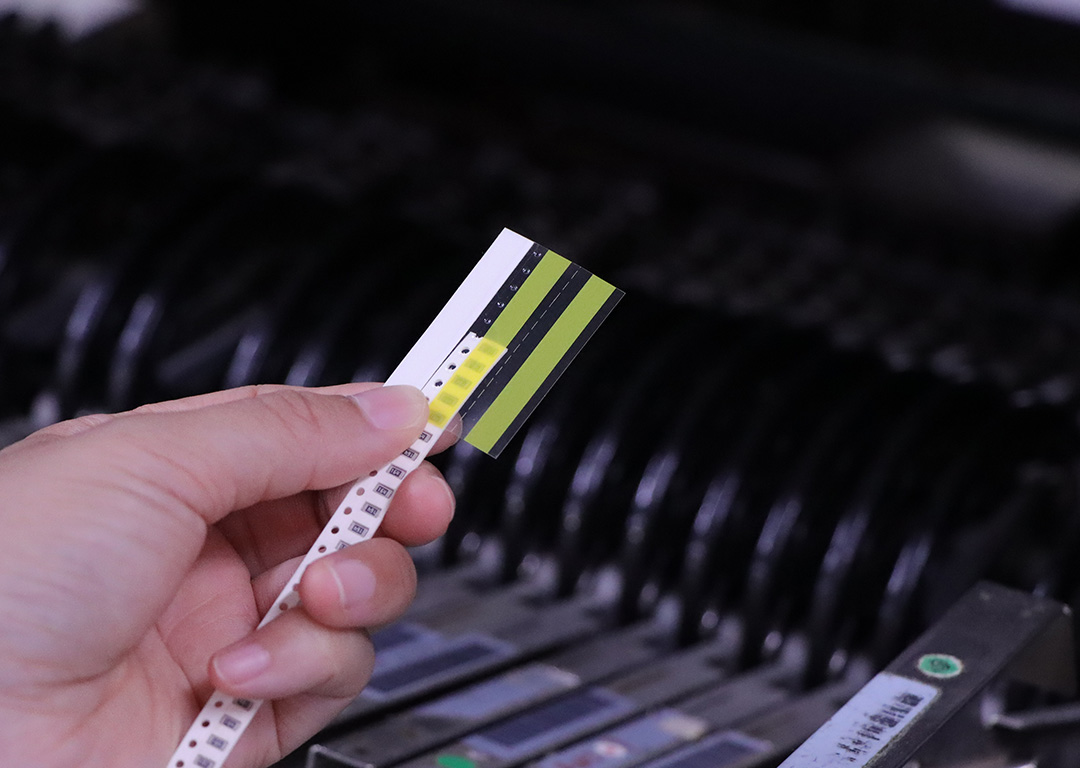

C. The Splicing Tape (The Seal)

The tape secures the Cover Tape (the clear film). In 2026, the industry has standardized three main types:

• Single-Sided Tape: Best for paper tapes and simple passives.

• Double-Sided Tape: Used for plastic embossed tapes to provide a flush, low-profile joint.

• Bandolier/Frame Tape: Pre-cut tapes with a plastic frame that forces the operator to align the tape perfectly every time.

3. Selecting the Right Tape for Your Components

Not all tapes are created equal. Choosing the wrong one can lead to “ghosting” (adhesive residue) or ESD damage.

4. Best Practices: The 5 Golden Rules of Splicing

To maintain a 99% splice success rate, your SMT operators should follow these standardized protocols:

Rule 1: The “Two-Pocket” Buffer

Always ensure there are at least two empty pockets at the end of the old reel and the start of the new one. Attempting to splice directly over a component pocket increases the thickness and causes the feeder to jam.

Rule 2: Precision Sprocket Alignment

The sprocket holes are the “gears” of your feeder. If the holes are misaligned by even 0.1mm, the pick-and-place nozzle will miss the center of the component. Use the pins on your splicing tool—never eyeball it.

Rule 3: Cover Tape Continuity

The most common point of failure is the cover tape snagging. Use a specialized Cover Tape Connector (a narrow, high-strength strip) to join the clear films. This ensures the peeling motor pulls the film back smoothly across the joint.

Rule 4: Cleanliness is Yield

Adhesives hate oil. If operators touch the splicing tape with bare fingers, the oils from their skin will degrade the bond. Always hold the tape by the non-adhesive tabs or use gloves.

Rule 5: The “Flex & Vision” Test

Before loading the reel:

1. Flex: Bend the splice area slightly to ensure it doesn’t snap.

2. Vision: Look through the sprocket holes to ensure the path is 100% clear for the feeder’s drive teeth.

5. Troubleshooting Common 2026 Splicing Issues

• Issue: Splice breaks inside the feeder.

  • Cause: No brass shim used, or low-quality adhesive.

  • Fix: Implement mandatory shim usage for all reels 12mm and wider.

• Issue: “No-Pick” errors immediately after a splice.

  • Cause: Sprocket holes were misaligned during splicing.

  • Fix: Check the calibration of your splicing scissors/cutters.

• Issue: Feeder jams or “Cover Tape Peel” alarm.

  • Cause: Splicing tape is too thick or was applied off-center.

  • Fix: Switch to ultra-thin (under 50-micron) splicing tapes.

Conclusion

SMT splicing is no longer just a “shop floor trick”—it is a disciplined engineering process. By investing in the right ESD-safe tapes, utilizing brass shims for mechanical strength, and enforcing best-practice SOPs, EMS providers can significantly boost their ROI and machine longevity.

In the world of high-speed assembly, the best splice is the one the machine never notices.
