Common SMT Splicing Errors and How to Prevent Feeder Jams

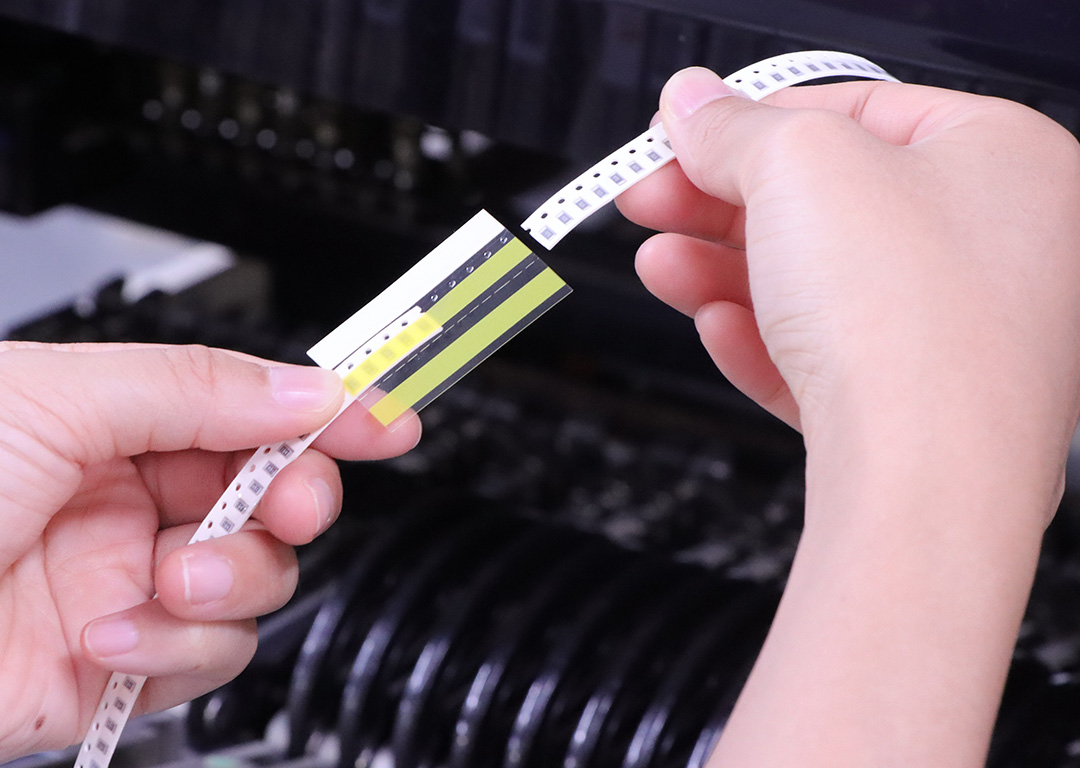

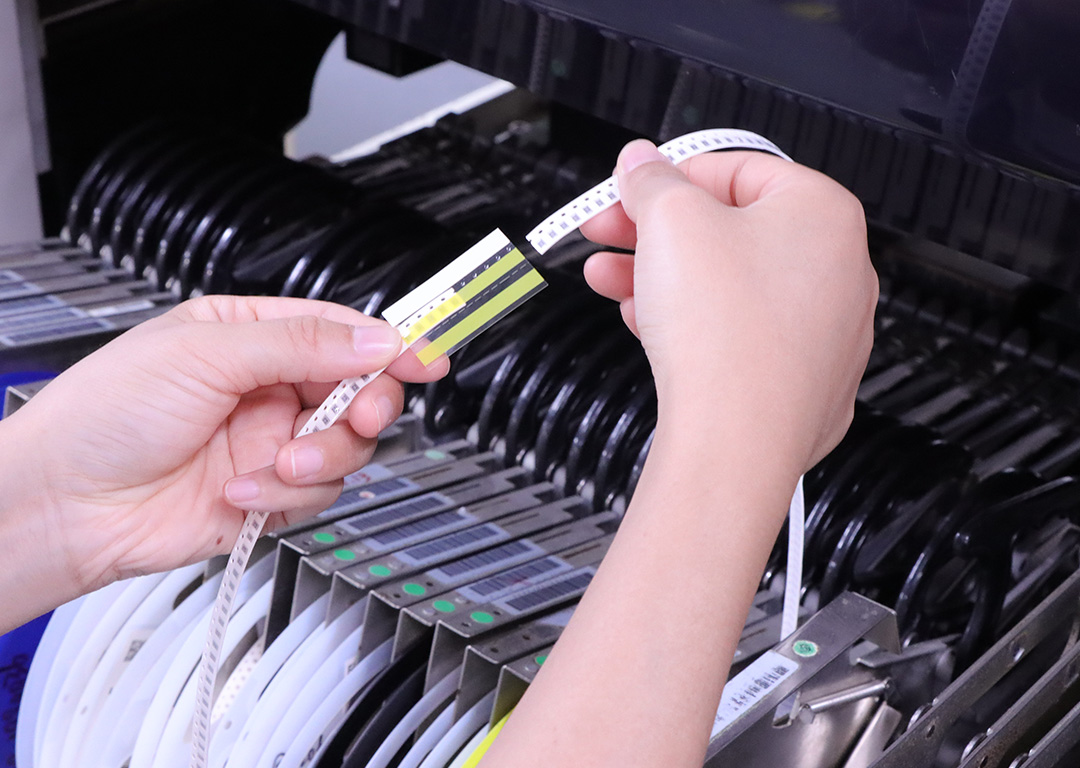

In the high-speed world of Surface Mount Technology (SMT), a single second of downtime can ripple through an entire production schedule. While SMT Splicing Tape is designed to keep the line running by joining component reels, a poorly executed splice is often the leading cause of “Feeder Jams”—the nightmare of every SMT operator.

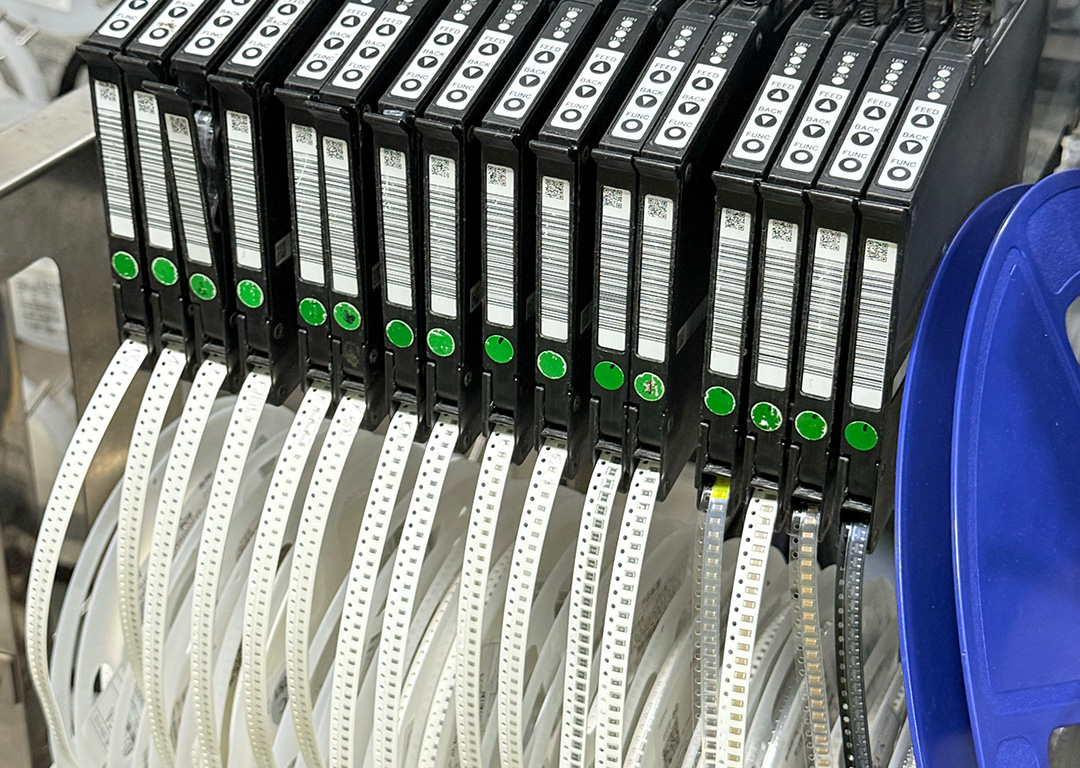

When a splice fails inside a high-speed mounter like a Fuji, Panasonic, or ASM, it doesn’t just stop the machine. It can damage expensive feeders, break cover tapes, and cause “mis-picks” that lead to costly component waste.

Understanding the root causes of these failures is the first step toward achieving a 99.9% splice success rate in 2026. Here is a breakdown of the most common SMT splicing errors and how to prevent them.

1. The “Diagonal Cut” Disaster

Most feeder jams start with the scissors. If the carrier tape is not cut at a perfect 90-degree angle, the two reels will meet at a slight “V” or “Z” shape.

• The Error: Using standard office scissors to cut the carrier tape. This creates an uneven seam that causes the tape to “zig-zag” as it enters the feeder’s guide rails.

• The Prevention: Always use a dedicated SMT Splicing Cutter with integrated alignment pins. These pins lock into the sprocket holes, ensuring the cut is perfectly perpendicular to the tape direction.

2. Sprocket Hole Misalignment (Pitch Errors)

The feeder’s sprocket wheel relies on consistent spacing between holes. If the splice overlaps or leaves too much of a gap between holes, the feeder’s “timing” is thrown off.

• The Error: “Eyeballing” the alignment when sticking the tape. If the holes are off by even 0.2mm, the pick-and-place nozzle will hit the edge of the component pocket instead of the center.

• The Prevention: Use Brass Shims and a splicing plier. The pins on the plier force the holes of both tapes into perfect synchronization before the adhesive is applied.

3. Adhesive “Bleed” and Residue Build-up

Low-quality splicing tapes often use adhesives that cannot handle the friction or the ambient heat of an SMT room.

• The Error: Using “generic” high-tack tape that isn’t rated for SMT environments. Over time, the adhesive “oozes” out from the sides of the tape, sticking to the feeder’s internal rollers.

• The Prevention: Source tapes with high shear strength and low-bleed silicone or acrylic adhesives. If you see a “gummy” residue on your feeders, it’s time to upgrade your tape quality.

4. The “Thick Splice” Jam

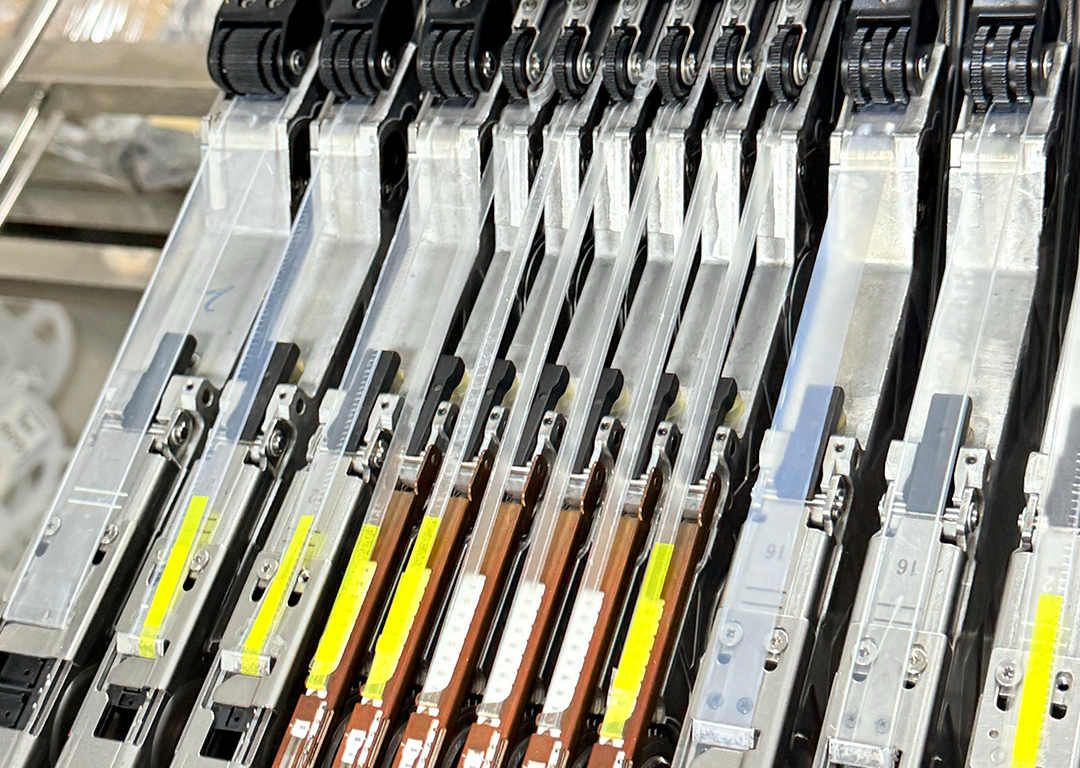

Modern feeders have incredibly tight tolerances to ensure component precision. A splice that is too “bulky” simply won’t fit through the feeder’s exit gate.

• The Error: Overlapping the carrier tapes or using multiple layers of thick tape.

• The Prevention: Use Double-Sided Splice Tape for a flush joint, or ultra-thin single-sided tape (less than 50 microns). Ensure the tape is applied only to the top and bottom, never wrapped around the sides where it adds width.

5. Cover Tape Peeling Failures

The most delicate part of the splice is the Cover Tape (the clear film). If the cover tapes of the two reels aren’t joined correctly, the machine’s peeling motor will snap the film.

• The Error: Neglecting to join the cover tapes or using a piece of tape that is too wide, which sticks to the carrier tape and prevents peeling.

• The Prevention: Use specialized Cover Tape Connectors. These are narrow, high-strength strips designed specifically to join the film without interfering with the carrier tape’s pockets.

6. ESD Damage from Non-Conductive Tapes

In 2026, with the rise of sensitive 5G and AI chipsets, Electrostatic Discharge (ESD) is a silent yield killer.

• The Error: Using standard yellow or blue splicing tape for active ICs. As these tapes move through the feeder at high speeds, they generate triboelectric charges.

• The Prevention: Switch to ESD-Safe (Anti-Static) Splicing Tape, usually identifiable by its black color or ESD symbol. These tapes dissipate static, protecting your components from latent failures.

The “Golden Protocol” for Zero-Jam Splicing

To eliminate these errors, implement the following Standard Operating Procedure (SOP) on your shop floor:

1. Alignment Pins First: Never join tapes without using the pins on a splicing tool.

2. The “Two-Hole” Overlap: Ensure the splicing tape covers at least two sprocket holes on each side of the joint for maximum stability.

3. Clean the Tooling: Adhesives can build up on splicing pliers. Clean them with Isopropyl Alcohol (IPA) every shift.

4. The “Flex Test”: After splicing, manually flex the joint. If it feels stiff or “kinked,” redo the splice before loading it into the feeder.

Conclusion

Preventing feeder jams isn’t about working faster; it’s about working more precisely. By addressing these common SMT splicing errors—from the initial cut to the final ESD check—EMS providers can significantly boost their OEE and reduce machine wear and tear.

In a high-speed assembly line, the “cheapest” tape is the one that never fails.
